When an application is truly demanding, you need more than just a pump that looks tough on a spec sheet. You need a machine that has been engineered from the ground up to survive continuous abuse, extreme loads, and unforgiving materials. CNSME has developed a line of heavy duty slurry pumps specifically for these punishing environments. These are not modified water pumps or light-duty industrial units pressed into service beyond their limits. They are purpose-built machines with thicker walls, larger bearings, stronger shafts, and more robust sealing systems. This article explores the specific design features that make CNSME heavy duty pumps suitable for the most demanding slurry pump supplier applications, from hard rock mining to steel mill scale handling to dredging in abrasive environments.

Extra-Thick Casings and Liners for Extended Wear Life

The most obvious difference between a standard pump and a heavy duty CNSME pump is the thickness of the materials that come into contact with the slurry. Where a light-duty pump might have a casing wall thickness of half an inch, a CNSME heavy duty pump can have walls an inch or more thick. The liners are correspondingly thicker, providing more material to wear away before the pump needs to be rebuilt. This extra thickness is not just about longevity, although that is a major benefit. It also provides greater structural rigidity, reducing deflection under pressure and maintaining tight internal clearances for longer. I have seen heavy duty CNSME pumps pulled apart after years of service in abrasive copper tailings, and the liners still had significant thickness remaining. The extra material upfront costs more to cast and machine, but for applications where downtime is measured in thousands of dollars per hour, the extended life pays for itself many times over.

Massive Shafts and Heavy Duty Bearings

Heavy duty slurry applications place enormous loads on the pump shaft and bearings. Dense slurries create high radial forces. Large particles can cause impact loads. Continuous operation generates heat. CNSME addresses these challenges by using oversized shafts with generous safety margins. The shaft diameter is larger than what you would find on a comparable pump from many competitors, reducing deflection and bending stress. The bearings are selected for high dynamic load ratings and long L10 life, even under continuous full-load operation. Bearing housings are cast with thick walls and large oil reservoirs to dissipate heat effectively. I have inspected a CNSME heavy duty pump after a year of continuous service in a steel mill scale application, and the bearings still felt smooth and showed no signs of spalling or overheating. That durability comes from conservative engineering that prioritizes reliability over weight or cost savings.

Reinforced Stuffing Box and Advanced Seal Options

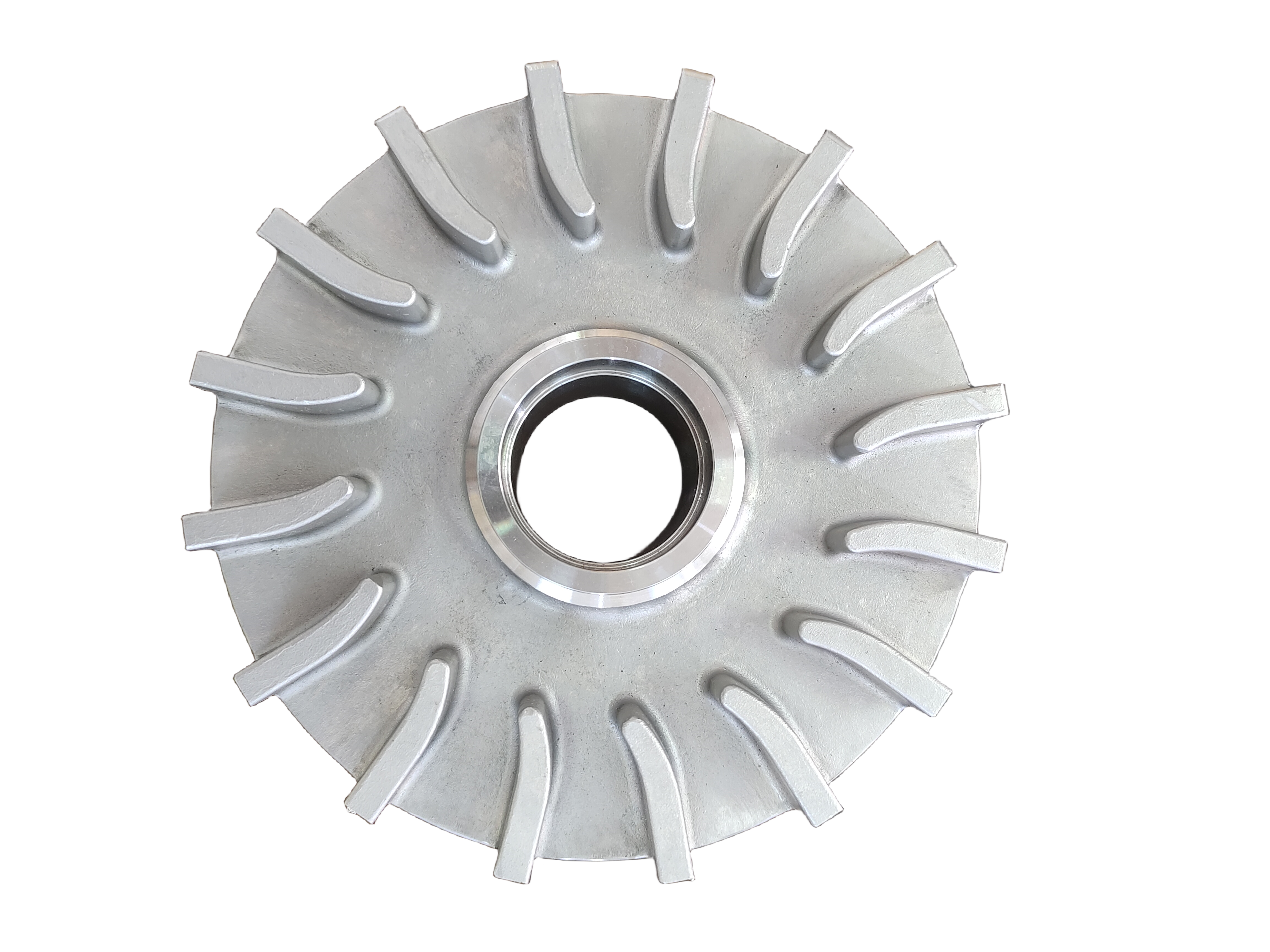

Seal failure is a common weak point in demanding slurry applications. The combination of high pressure, abrasive particles, and sometimes high temperatures can overwhelm standard sealing arrangements. CNSME heavy duty pumps feature reinforced stuffing boxes with deeper packing chambers or larger mechanical seal cavities, allowing for more robust sealing components. For gland packing applications, the deeper box accommodates more rings of packing, providing better sealing and longer life between adjustments. For mechanical seal applications, the larger cavity allows for bigger seal faces and better flush distribution. CNSME also offers advanced seal options including tandem mechanical seals for high-pressure applications and expeller seals for situations where external flush water is limited. I have seen a CNSME heavy duty pump with a specialized mechanical seal run for over two years in a high-pressure tailings application without a single seal leak. That kind of performance is only possible when the stuffing box and seal system are designed for heavy duty from the start.

Robust Baseplates and Support Structures

A heavy duty pump is only as stable as the structure that supports it. CNSME designs their heavy duty pumps with robust baseplates that resist twisting and vibration. The baseplates are fabricated from thick steel channels or plates, with generous gussets and cross-bracing. Mounting pads are machined flat and parallel to ensure proper alignment between the pump and the driver. For the largest pumps, CNSME offers concrete foundation templates and grouting guides to ensure a solid installation. I have walked up to heavy duty pumps that were shaking themselves apart because the baseplate was too flimsy to handle the loads. That does not happen with CNSME. Their baseplates are designed to be as tough as the pump itself, providing a stable platform that maintains alignment and reduces vibration-related wear on bearings, seals, and couplings.

High Efficiency Hydraulics Without Sacrificing Durability

Heavy duty does not have to mean inefficient. CNSME has invested significant engineering effort into developing hydraulic designs that move slurry effectively while consuming reasonable amounts of power. Their heavy duty impellers and casings are shaped to minimize turbulence and recirculation, two major sources of both wear and energy loss. The result is a pump that can handle demanding slurries without requiring an oversized motor or wasting electricity. I have compared the power consumption of CNSME heavy duty pumps to older designs in the same service, and the efficiency improvements are noticeable on the utility bill. For a large mine running dozens of pumps, even a five percent efficiency gain translates into substantial annual savings. CNSME proves that heavy duty and high efficiency are not mutually exclusive.

Field-Proven Reliability in Extreme Conditions

Ultimately, the best evidence for CNSME heavy duty designs comes from their performance in the field. These pumps are running in some of the most extreme industrial environments on the planet. They handle oil sands slurry in northern Canada, where cold temperatures thicken the fluid and challenge seals. They pump volcanic ash in geothermal plants, where high temperatures and sharp particles destroy ordinary pumps. They move dredged material in coastal operations, where salt water adds corrosion to abrasion. In each case, CNSME heavy duty pumps have proven themselves reliable over years of service. I have read maintenance logs from customers who previously went through three pumps per year in a particularly tough application, then switched to a CNSME heavy duty unit that lasted over eighteen months. That kind of field-proven reliability is what makes CNSME a trusted name for the most demanding slurry applications.
