Projection welding is a cornerstone in industrial metal-joining processes, providing precision, repeatability, and high-speed productivity for manufacturers worldwide. For OEMs, automation integrators, and factory decision-makers, understanding the nuances of projection welding can significantly impact product quality, operational efficiency, and long-term cost savings. At Heron Welder, we specialize in advanced projection welding solutions designed to meet the demands of modern automated production lines.

What is Projection Welding?

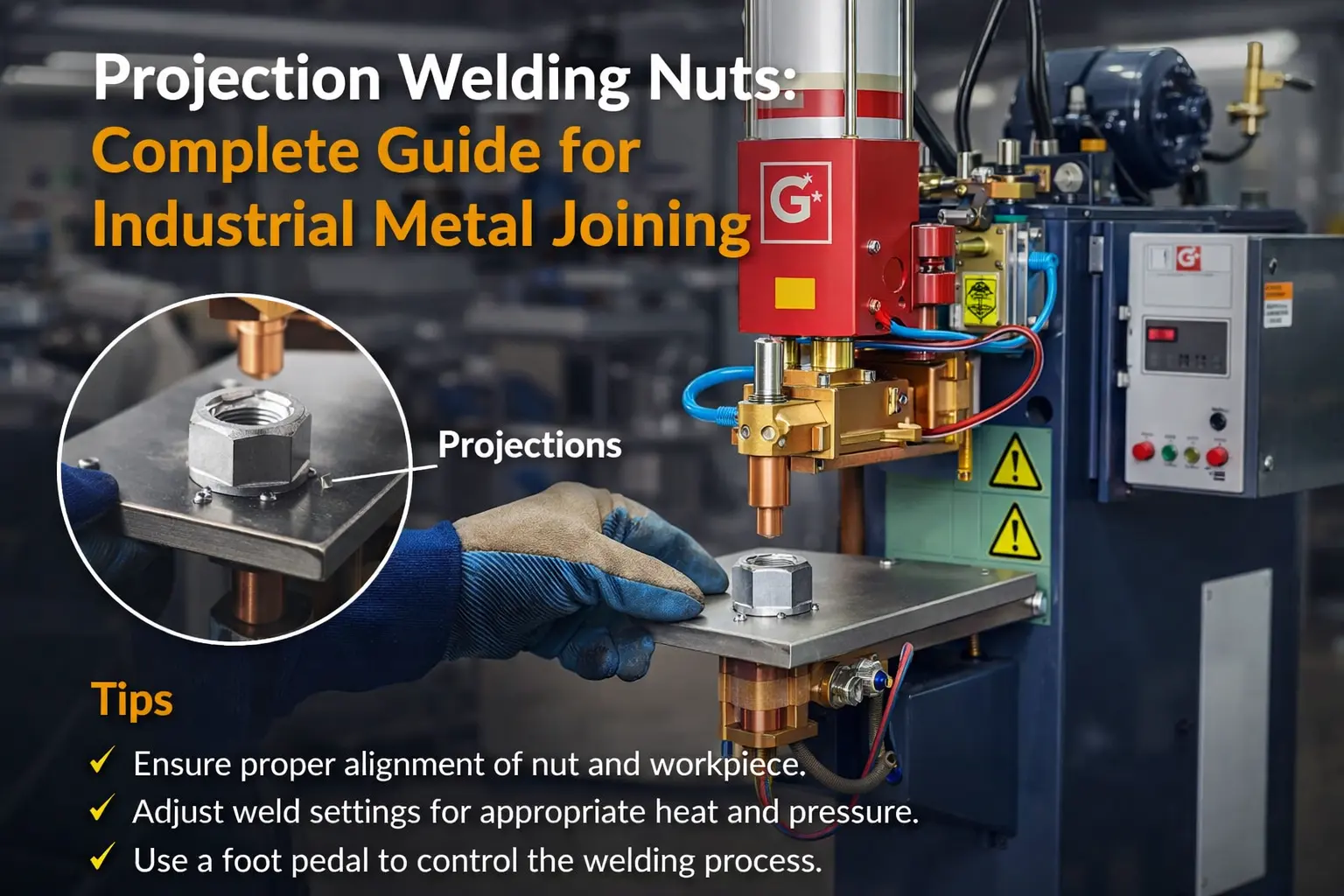

Projection welding is a type of resistance welding where raised sections (projections) on one or both workpieces focus the electrical current and pressure to localized points. These projections concentrate heat generation during the weld cycle, creating strong and uniform welds without excessive deformation of surrounding material.

Unlike traditional spot welding, projection welding allows multiple points to be welded simultaneously, reducing cycle times and improving production throughput making it ideal for automotive components, heavy machinery, and metal furniture assembly.

Key Advantages of Projection Welding

1. Precise, Consistent Welds

Projection welding ensures uniform welds at every point, even on complex geometries or thin materials. This consistency reduces rework and scrap, enhancing overall production efficiency.

2. High Production Throughput

Because multiple welds can be executed in a single cycle, projection welding significantly increases manufacturing speed compared to spot welding, enabling higher volumes without compromising quality.

3. Minimal Surface Deformation

The localized heat from projections preserves the structural integrity of surrounding metal, preventing warping and distortion critical for aesthetic and functional parts.

4. Energy Efficiency

Targeted heating focuses energy only where it is needed, lowering electricity consumption and reducing operational costs in large-scale production environments.

Common Challenges in Projection Welding

While projection welding offers numerous advantages, manufacturers often encounter the following challenges:

• Inconsistent Weld Quality – Misaligned projections or uneven material thickness can cause weak welds.
• Electrode Wear – Frequent production cycles can accelerate electrode degradation.
• Process Complexity – Multi-point projection welding requires precise control of current, pressure, and timing.

At Heron Welder, we address these pain points with advanced equipment and engineering support.

How Heron Solves Projection Welding Challenges

Advanced Projection Welding Machines

Our resistance projection welding machines are engineered for precision and durability. Features include:

• Adaptive current control – Automatically adjusts welding current based on material type and thickness for consistent weld strength.
• High-duty electrodes – Designed to reduce wear and maintenance downtime.
• Integrated process monitoring – Real-time feedback ensures every weld meets quality standards.

Automation Integration

Heron’s projection welding systems are fully compatible with automated production lines, including robotic handling and conveyor integration. This eliminates human error, increases safety, and ensures high-volume repeatability.

Customized Solutions

Every manufacturing line has unique requirements. Heron works closely with engineers and production managers to design tailored welding solutions that match part geometry, production speed, and quality standards reducing scrap rates and boosting ROI.

Industries Benefiting from Projection Welding

• Automotive – Chassis components, brackets, and fasteners.
• Appliance Manufacturing – Stainless steel frames, structural assemblies.
• Furniture and Metal Fabrication – High-quality multi-point welds with minimal distortion.
• Heavy Equipment & Machinery – Durable welds on load-bearing components.

By combining Heron’s projection welding expertise with advanced automation, manufacturers achieve consistent, high-strength welds while optimizing production efficiency.

Why Choose Heron Welder for Projection Welding

Heron Welder is recognized globally for industrial welding innovation and reliability. Key differentiators include:

• Global Support & Service – On-site commissioning, training, and maintenance.
• Engineering Expertise – Assistance in process optimization and system integration.
• Comprehensive Welding Portfolio – From projection and spot welding to seam, MFDC, and capacitor discharge systems, plus FSPR and clinching solutions.

Our focus is not just on equipment, but on delivering end-to-end solutions that solve real production challenges for OEMs and manufacturing plants.

FAQs About Projection Welding

Q1: Can projection welding be used on thin metals?
A1: Yes, projection welding is ideal for thin materials because it concentrates heat at projections, minimizing distortion and preserving part integrity.

Q2: How many weld points can be joined simultaneously?
A2: Modern Heron projection welders can weld multiple points in a single cycle, depending on electrode design and part configuration.

Q3: What maintenance is required for projection welding electrodes?
A3: Regular inspection, cleaning, and replacement of worn electrodes ensures consistent weld quality. Heron’s high-duty electrodes reduce downtime.

Q4: Is projection welding suitable for automated production lines?
A4: Absolutely. Heron’s systems are designed for seamless integration with robotic arms and automated conveyors for high-volume production.

Q5: How does projection welding differ from spot welding?
A5: Unlike spot welding, projection welding uses raised projections to concentrate heat, allowing simultaneous multi-point welding with less material deformation.

Maximize Your Production with Heron Projection Welding Solutions

Projection welding is more than just a joining method—it’s a pathway to higher efficiency, improved quality, and reduced production costs. At Heron Welder, we combine innovative technology, engineering expertise, and automation integration to deliver projection welding solutions tailored to your manufacturing challenges.

Request a consultation or quote today to explore how Heron’s projection welding systems can transform your production line and elevate your manufacturing capabilities.
